I spent some time playing with Influxdb and Grafana and found out that the OS metrics tool Glances can directly import stats directly into Influxdb. This is cool because it will save us a ton of time in writing our own metric collection agents.
As a test, I decided to send all my Macbook metrics to Influxdb and see Grafana would display.
To do this I had to make sure that Glances was installed. I couldn’t install it directly from brew so I had to ensure python was installed and installed via pip.
brew install python
pip install glances
From there you need to locate the glances.conf file and edit the Influxdb configuration section.
On my system I located it under:
/usr/local/share/doc/glances/glances.conf
But this might differ from system to system. Edit the influxdb configuration block that looks like this:
[influxdb]
# Configuration for the --export-influxdb option
# https://influxdb.com/
host=localhost
port=8086
user=root
password=root
db=glances
prefix=localhost
#tags=foo:bar,spam:eggs
to point to your Influxdb server.
[influxdb]
# Configuration for the --export-influxdb option
# https://influxdb.com/
host=influx.local
port=8086
user=
password=
db=glances
prefix=macbook
#tags=foo:bar,spam:eggs
On the Influxdb server ensure that the glances database exists. You can use the influx cli tool to create the database or a curl post.
Then attempt to start it with:
Glances --export-influxdb
Of course it wouldn’t work on the first try…
$ Glances --export-influxdb
Traceback (most recent call last):
File "/usr/local/bin/Glances", line 11, in <module>
sys.exit(main())
File "/usr/local/lib/python2.7/site-packages/glances/__init__.py", line 130, in main
args=core.get_args())
File "/usr/local/lib/python2.7/site-packages/glances/standalone.py", line 41, in __init__
self.stats = GlancesStats(config=config, args=args)
File "/usr/local/lib/python2.7/site-packages/glances/stats.py", line 43, in __init__
self.load_plugins_and_exports(self.args)
File "/usr/local/lib/python2.7/site-packages/glances/stats.py", line 80, in load_plugins_and_exports
self.load_exports(args=args)
File "/usr/local/lib/python2.7/site-packages/glances/stats.py", line 123, in load_exports
export_module = __import__(os.path.basename(item)[:-3])
File "/usr/local/lib/python2.7/site-packages/glances/exports/glances_influxdb.py", line 28, in <module>
from influxdb import InfluxDBClient
ImportError: No module named influxdb:
Well then we need to install the influxdb module right?
pip install influxdb
Worked, but now I got this new error:
me@mba ~ $ Glances --export-influxdb
No InfluxDB configuration found
Why? So difficult!
Turns out you’ll need to copy /usr/local/share/doc/glances/glances.conf into /usr/local/etc/glances/glances.conf… The glances directory does not exist by default, so you’ll also need to create that.
I just created a glances.conf with the Influxdb configuration block and it started working. You can validate on the influx side by listing the series.

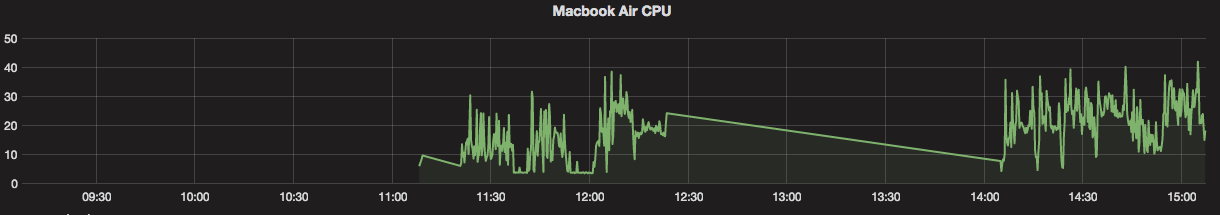

Once you get everything configured, give glances some time to feed some stats to Influxdb and you should be able to get some useful stats graphed through Grafana.
